AC Current Sensors
Description
AC current sensors from 15A to 10,000A
Packet Power offers a wide range of AC current sensors to meet your power monitoring needs.
- Split core CTs – 15A to 4000A
- Solid core CTs – 30A to 400A
- Rogowski coils – 100A to 10,000A
- Pre-wired CT harnesses that fit in even the tightest spaces
- Loose CT leads in a variety of lengths for any installation
Features

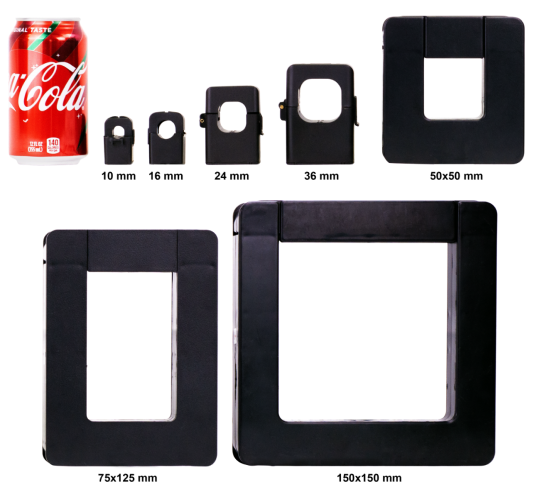

Split core CTs
Split core CTs can be opened and placed around the conductor without having to disconnect the conductor or disrupt power. Split core CTs are more expensive than solid core CTs but the added convenience makes them the preferred choice for retrofit installations.
Contact Packet Power for additional current ratings.
| Inside Diameter | Rated Amperage (A) |
| 10 mm | 15, 30, 50 |
| 16 mm | 100 |
| 24 mm | 100, 200, 300 |
| 36 mm | 200, 300, 400, 600 |
| 50 x 50 mm | 400, 600, 800 |
| 75 x 125 mm | 300, 600, 800 |
| 150 x 150 mm | 800, 1000, 1200, 1600, 2000, 3000, 4000 |

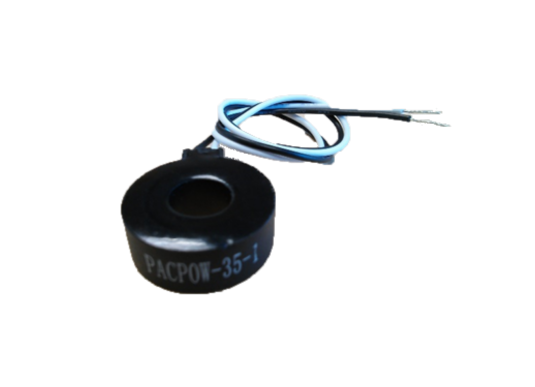

Solid core CTs
Solid core CTs feature a permanently closed core. Installing a solid core CT requires disconnecting the conductor to pass it through the CT core. Solid core CTs are a cost effective solution when service disruption is not an issue.
Contact Packet Power for additional options.
| Inside diameter | Rated Amperage (A) |
| 9 mm | 35 |
| 15 mm | 60 |
| 32 mm | 200, 400 |

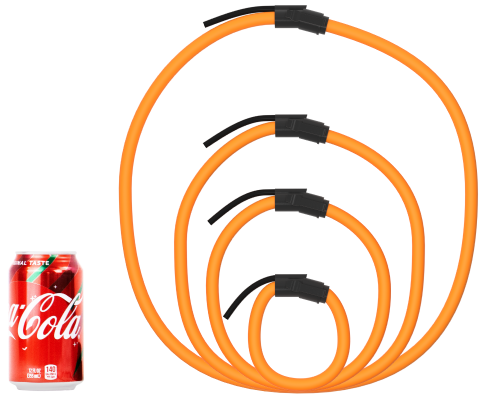

Rogowski coil sensors
The most versatile of current sensor options, Rogowski coils are flexible enough to fit around irregularly-shaped conductors and minimize disruption to service during installation. Packet Power offers a variety of coil lengths.
Contact Packet Power for additional options.
| Inside diameter | Coil length | Typical Amperage |
| 68 mm | 250 mm | 100A to 1000A |
| 147 mm | 500 mm | 400A to 3000A |
| 211 mm | 700 mm | 1000A to 5000A |
| 306 mm | 1000 mm | 2000A to 10,000A |
