Anritsu MT1040A 400G Tester

The Network Master Pro MT1040A is a portable tester for 400G Ethernet networks utilized in hyper and Colocation data centers. However, 400G Ethernet Core and Metro networks are evolving to meet the demands of mobile edge and cloud computing deployments as 5G and IoT applications become more widespread. The MT1040A eases the burden of 400G Ethernet testing for all these applications.
Description Features Resources Enquiry
Description

The portable B5-size Network Master Pro MT1040A for 400G has customized expandability with easy operation. Installing the OTDR measurement module supports optical fiber continuity tests.

Features
  • Telecom world's smallest dual-port capable portable 400G tester supporting speeds from 10M to 400G with direct QSFP-DD and OSFP module installation
  • Flexible: Adding OTDR module option supports field tests or 400G dual-port laboratory test applications
  • Powerful: Displays 400G FEC-corrected symbol errors as histogram; single-button operation from setting parameters to displaying results helps improve on-site test efficiency


Small: MT1040A Measurement Interface

With a large, 9-inch touch-panel screen in a small, portable case, the MT1040A is ideal for on-site measurements. Direct plug-in of an Optical module, Direct Attached or Active Optic Cable in the measurement interface supports speeds from 10M to 400G. In addition, both QFSP-DD and OSFP modules can be selected as the 400G Ethernet interface.
Interface Ethernet OTN CPRI/OBSAI SDH/SONET FC
QSFP-DD*1 400GbE - - - -
OSFP*1 400GbE
QSFP28 100GbE OTU4 - - -
QSFP+ 40GbE OTU3x - - -
SFP28/SFP+/SFP 25GbE/10GbE/GbE OTU2x/OTU1x CPRI 1/2/3/4/5/6/7/8/9/10 OBSAI 1x/2x/4x/8x STM1 to 64 OC-3 to 192 1 to 16G FC
RJ45 10/100/1000M - - - -
*1 Select interface

Flexible: All-in-one tester for On-site Measurements

As well as supporting these 400G modules, installing the OTDR module incorporating a rubidium oscillator in the MT1040A supports optical line maintenance tests, which eliminates the need to carry several different instruments on-site and lightens the engineer's work burden.
External Appearance Module Name
MT1040A_400G_Module 400G Multirate Module
MT1040A_OTDR_Module OTDR Module

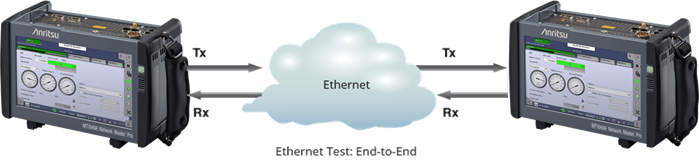

The MT1040A can be customized for various on-site applications by configuring different measurement modules in the main frame. The following remote measurements are supported using two MT1040A units. MT1040A_Ethernet_End_to_END

Frame Loss and Frame Loss Rate Measurement Throughput Measurement Latency Measurement (in combination with GPS module) Packet Jitter Measurement

Both the OTDR module and a fiberscope can be installed.
Installing two 400G modules simultaneously enables two 400G client lines on one unit.

End-to-End BER Measurement Throughput Measurement Latency Measurement Packet Jitter Measurement FEC Evaluation LFS Evaluation

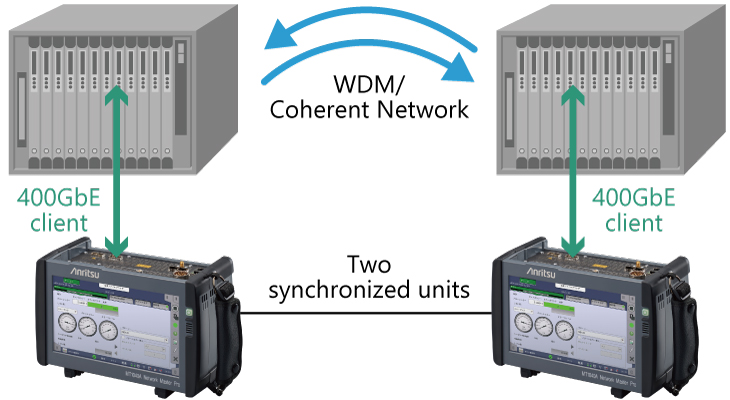

synchronizing two MT1040A units supports evaluation of 400G devices on client lines and in the laboratory.
These features make the MT1040A ideal for tests in various measurement environments.
